Route Plans can be generated manually (eg. in a spreadsheet editor) or using routing software (eg. Paragon, etc.) and can be transmitted via the veroFresh™ API to facilitate Enterprise routing functionality.

Files can be uploaded manually on-demand, or done in batches, eg. daily at midnight.

Understanding Route Plans

Route plans are the backbone of how veroFresh™ organizes and matches incoming route data. Each route plan outlines a set of scheduled stops over a specific time-frame and includes where and when vehicles are expected to arrive. These plans must be uploaded before telematics data can be connected to veroFresh™.

Once uploaded, route plans are matched against live data to track actual versus planned routes. If a newly uploaded plan matches an existing plan (based on route number and date), the existing plan will be updated, not duplicated.

By default, veroFresh™ considers a match to be within ±48 hours. For example:

• Uploading route 100 for Monday

• Then uploading route 100 again for Tuesday
  → Tuesday’s upload updates Monday’s plan.

For this reason, we recommend naming routes uniquely per week (e.g., 1100 (For Monday), 2100 (For Tuesday), etc.) to avoid accidental overwrites. This behavior is configurable, but modifying it may complicate future changes to schedules.

Methods

We currently support two upload methods for route plans:

1. SFTP Upload

• Upload to: sftp://files.verofresh.com

• Port: 2222

• Authentication: Your assigned veroFresh™ SFTP credentials

• Supports key-based login for automation (contact support to register your public key)

2. API

• Endpoint: POST /route-plan/bulk-create

• Payload: JSON

• API documentation is available in the veroFresh™ web app. Log in, and go to Menu → API Documentation.

  • If you don’t see this menu option, your user may not yet have API access. Contact veroFresh™ support to enable API integration.

While the interface is technical, most routing systems or IT teams should be able to set this up with minimal guidance.

File Format (For SFTP Upload)

All route plans must be submitted using a single, standardized CSV format called VFCsv.

VFCsv Format

This is a comma-separated file with no quotation marks. Each row represents a stop on a route. You must include all stops for a given route plan in the same file.

Fields Explained

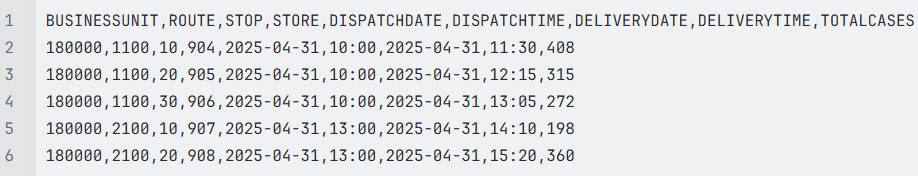

Sample VFcsv

API Integration Details (Overview Only)

If your team is using the veroFresh™ API to upload route plans:

• You will send a POST request to /route-plan/bulk-create

• The body will contain a list of route plans

• Each route plan includes:

  • dc – distribution center ID (must match a veroFresh™ Location code)

  • route_number – route name or number

  • start and stop – estimated dispatch and end times

  • stops – a list of stops, each with:

    • stop_id (usually a store/location code)

    • eta (estimated arrival time)

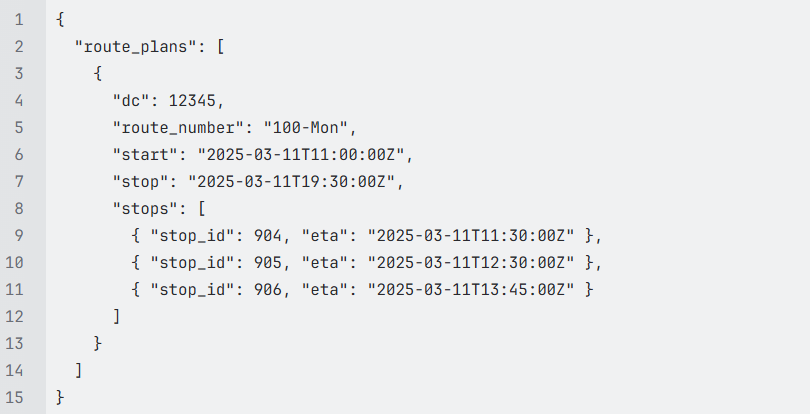

The system will process route plans submitted via API exactly the same way as those uploaded via SFTP. Here’s a simplified example of an API payload:

For the full schema, visit API Documentation in your veroFresh™ account.

Addendum

Helpful Links

• Secure File Transfer Protocol

• Comma-separated values

• Generating SSH Keys
